Professional Riders
P 524
$28,290.00Rec. retail price incl. GST SKU: 967847901- Power/fuel typePetrol
- Cutting width, min112 cm
Product description

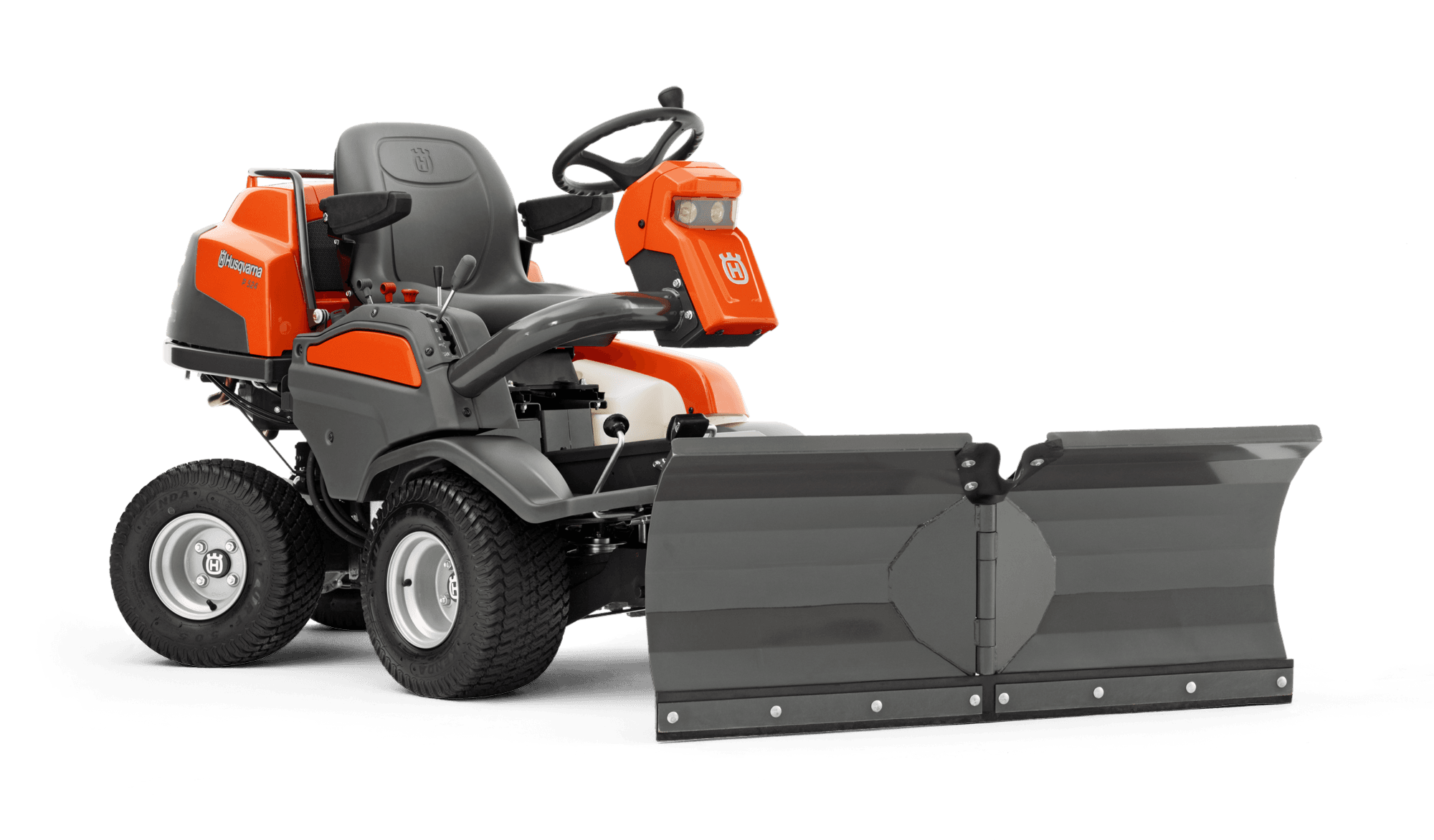

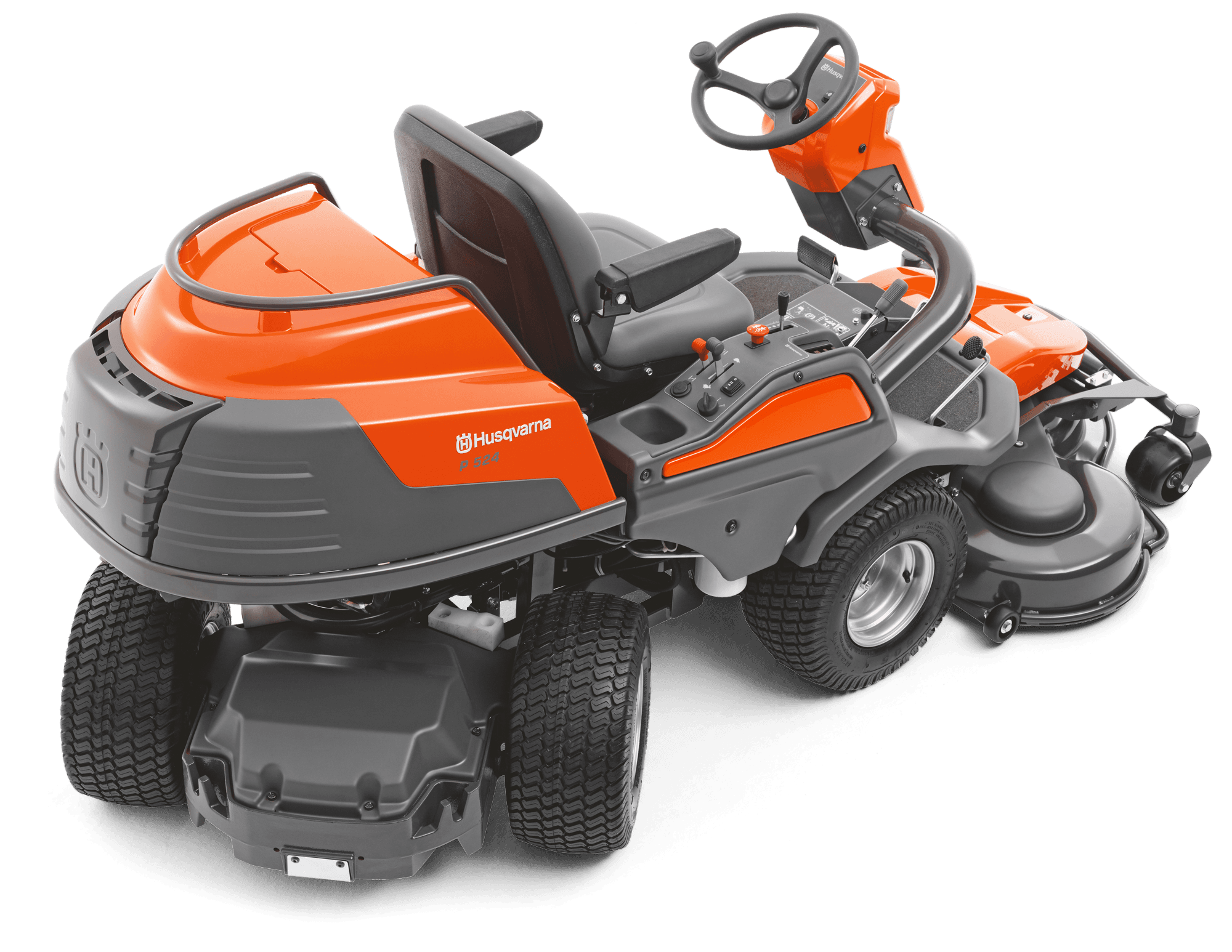

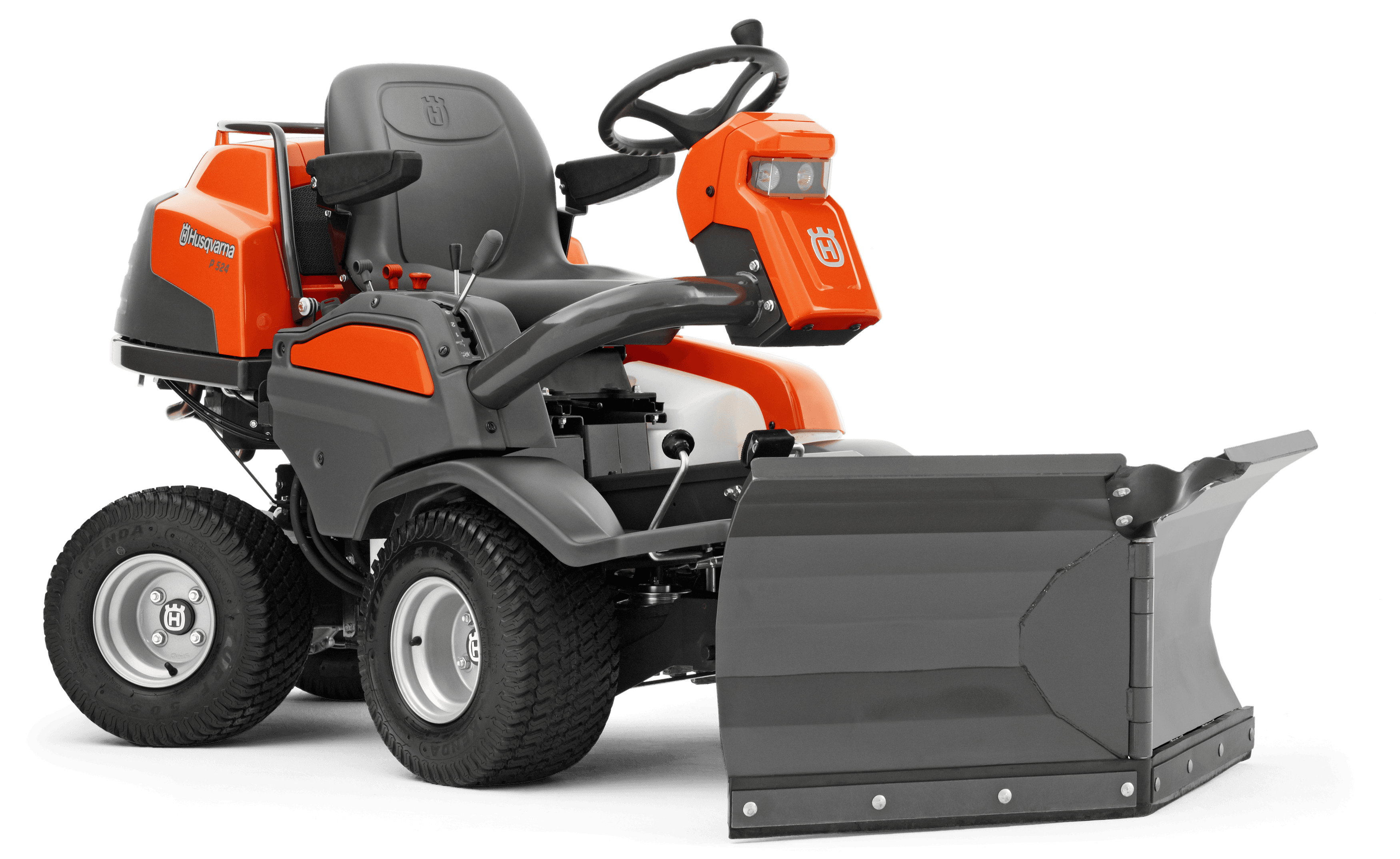

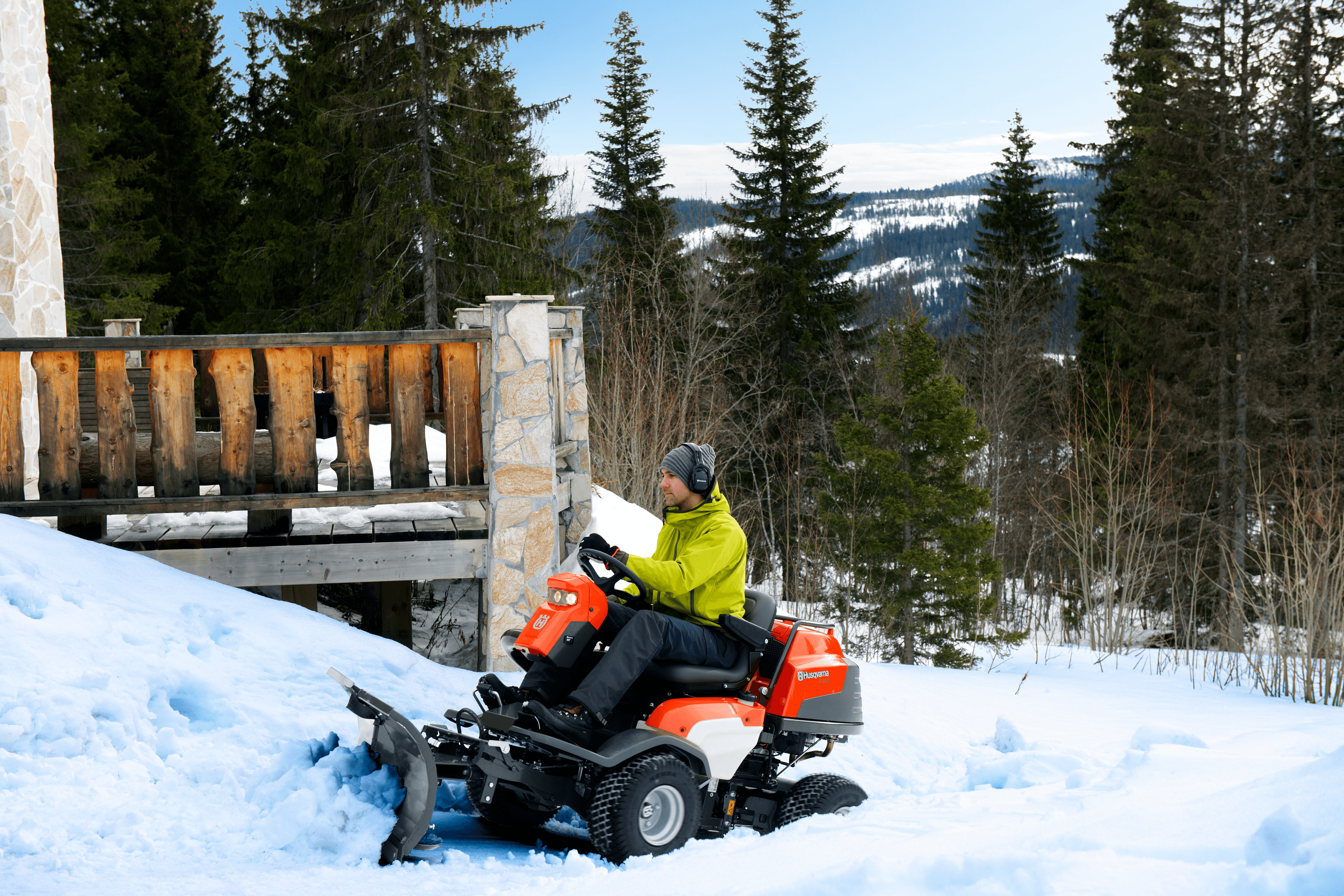

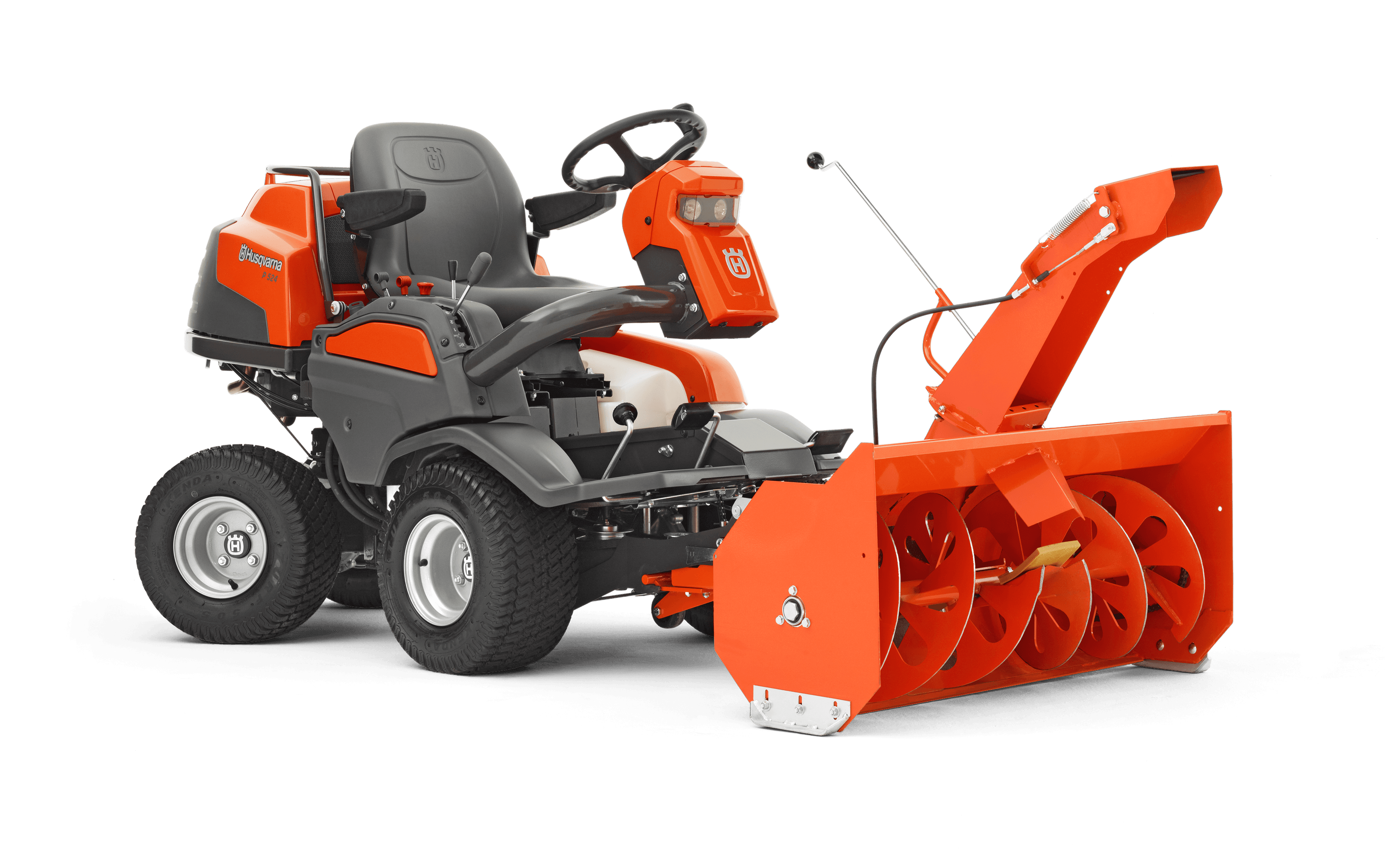

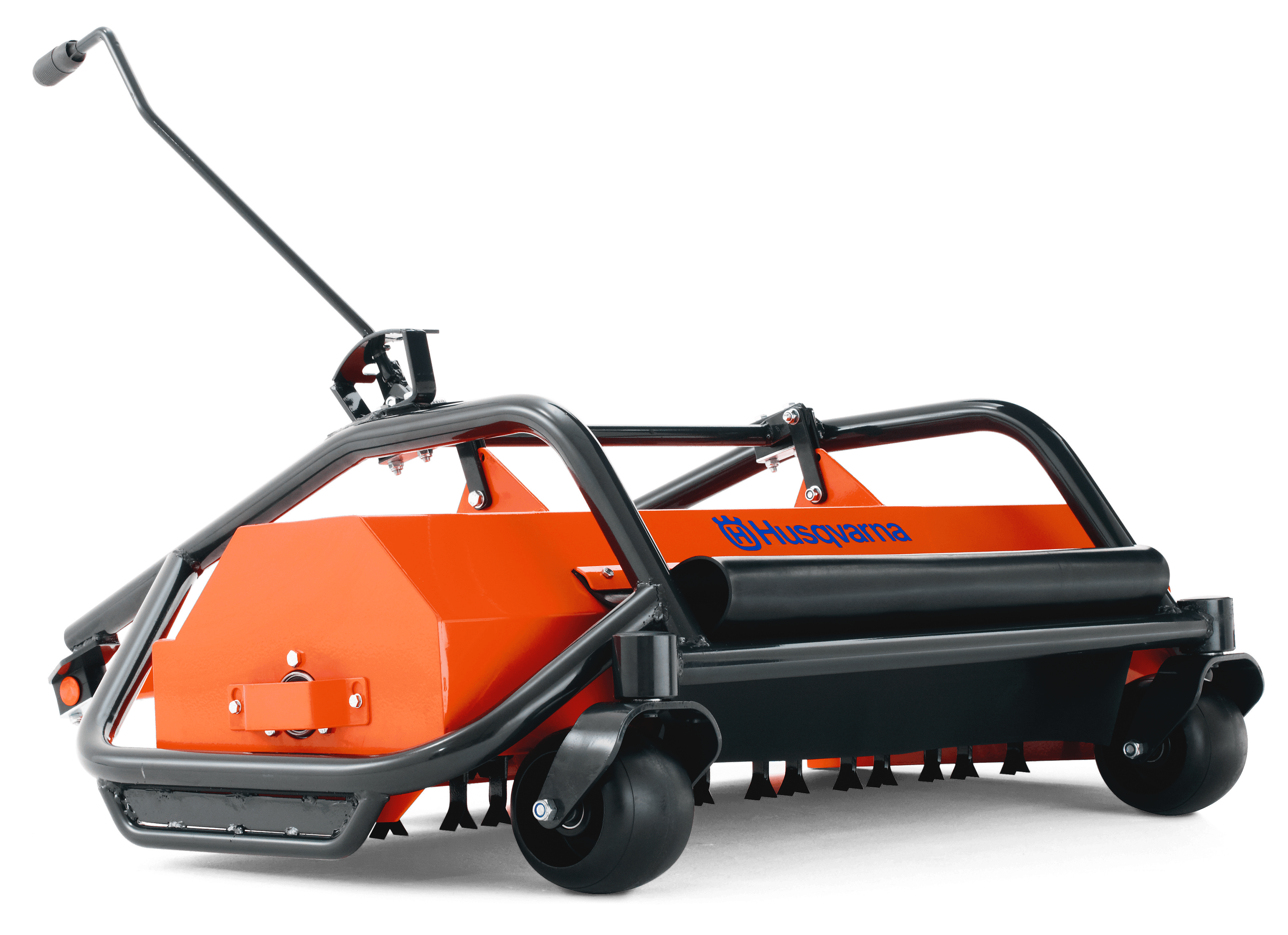

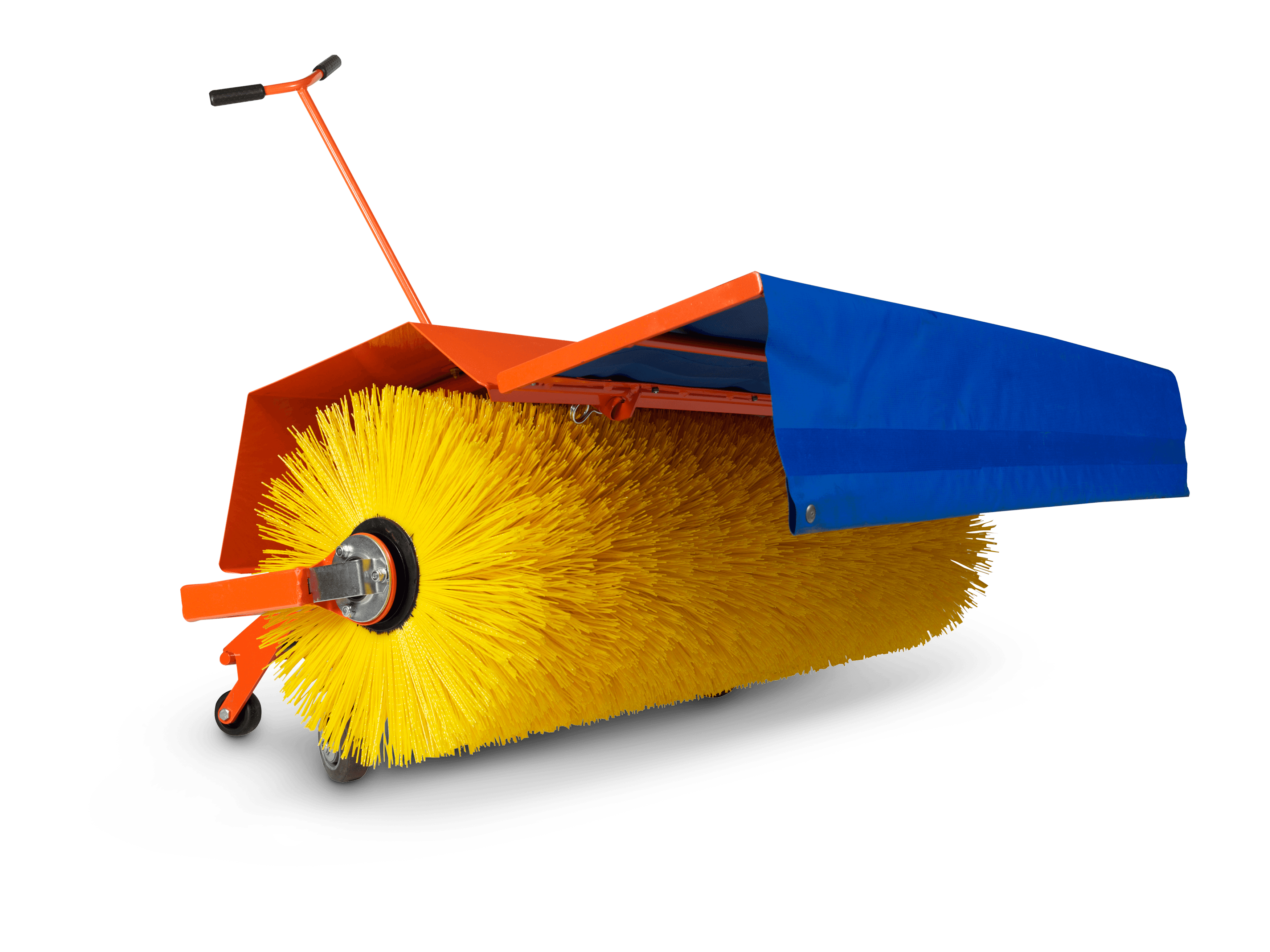

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower & broom give increased productivity all-year round. The P 524 can be fitted with either a 112 or 122 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.
Product Information
Features (17)
Articulated steering
Min. clearance circle by articulated steering
Trimming ability
Front-mounted cutting deck for precise trimming
Mowing accessibility
Unbeatable mowing accessibility
All-Wheel Drive (AWD)
Excellent hillside driving performance
Versatile usage
Accessories for versatile year/round usage
Quick coupling
Easy tool exchange by unique quick coupling

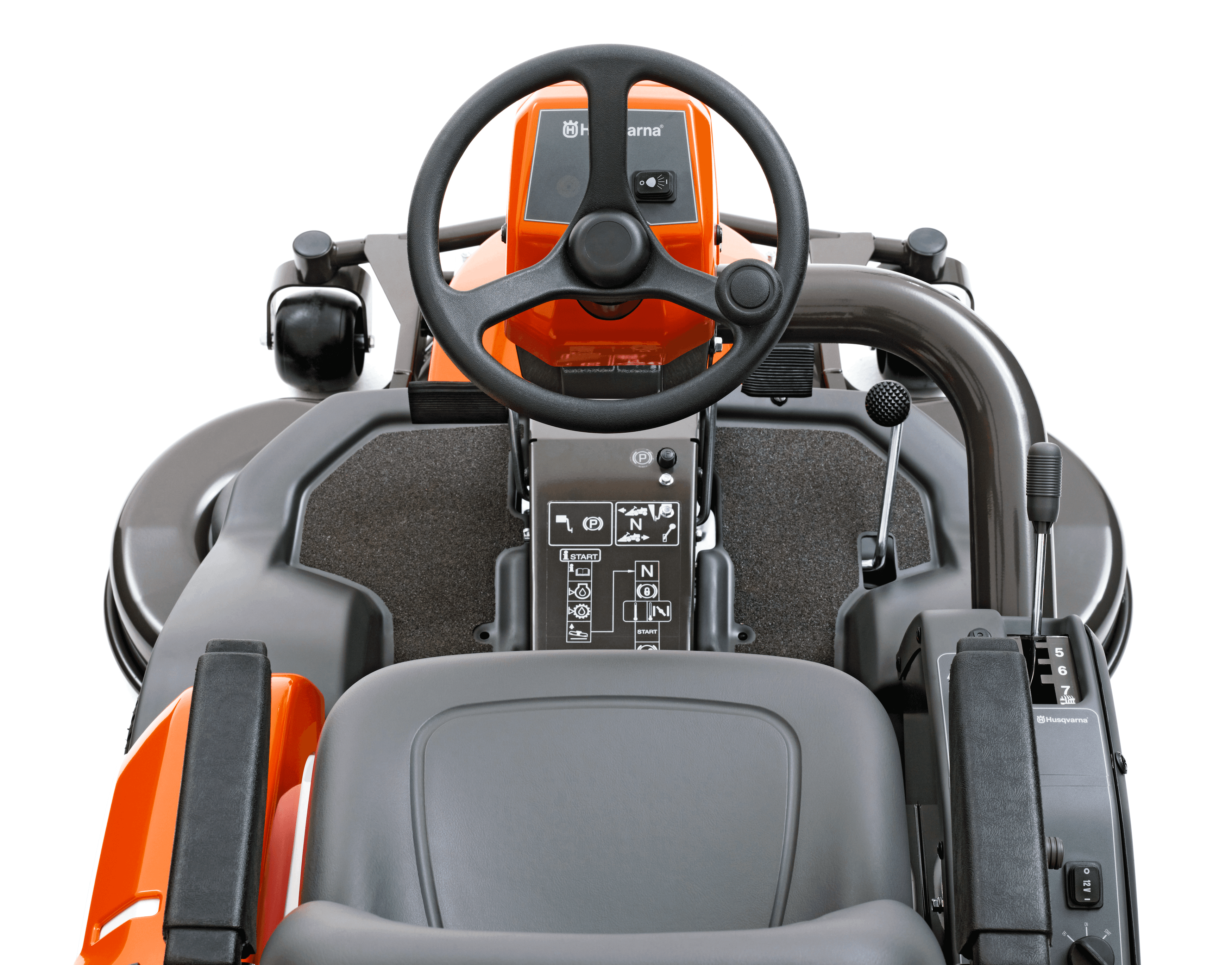

Ergonomic operation
Ergonomic operator's interface
Hydraulic power steering
Hydraulic power steering for increased comfort

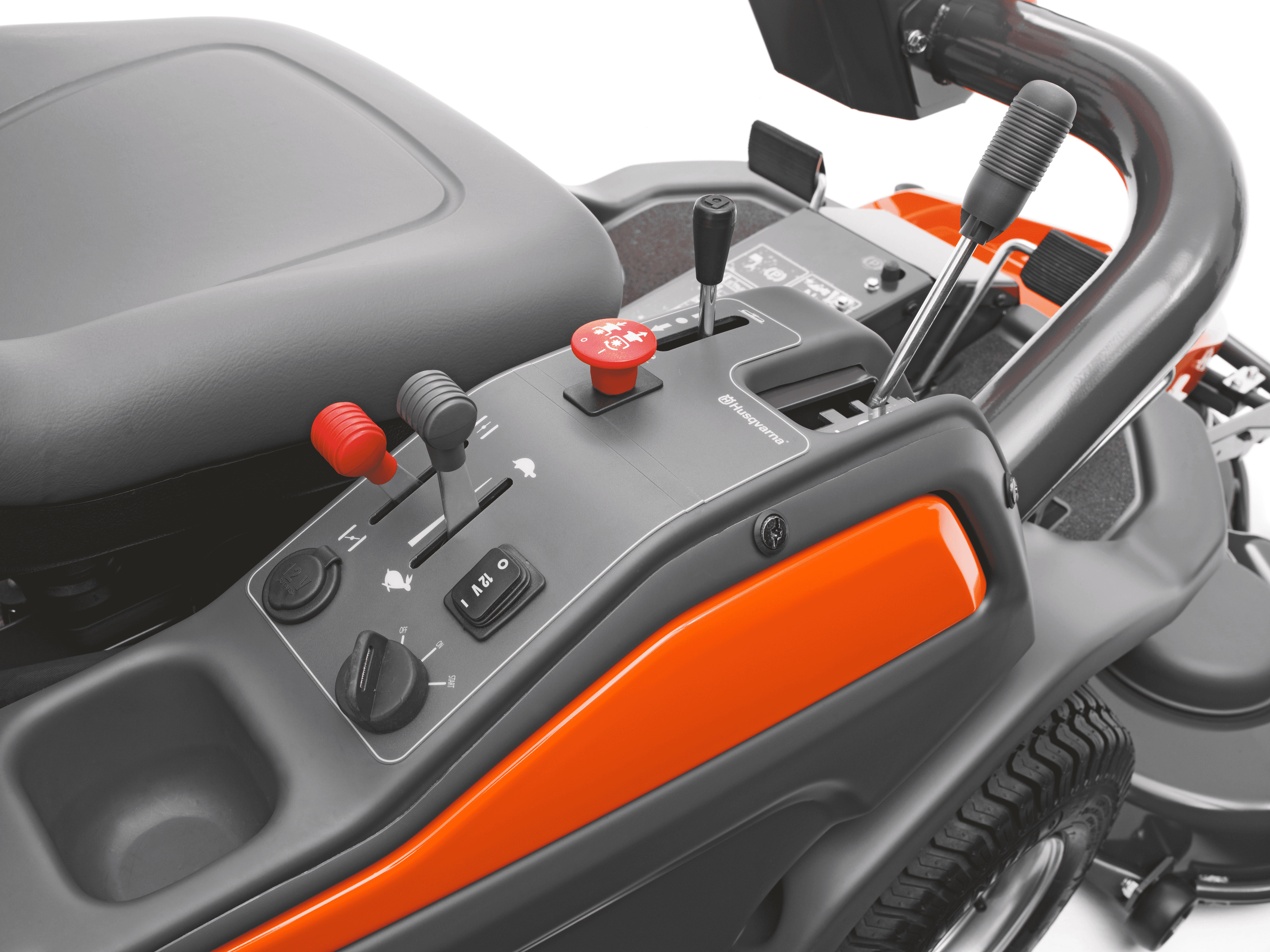

Easy-access controls
Easy-access controls for user comfort

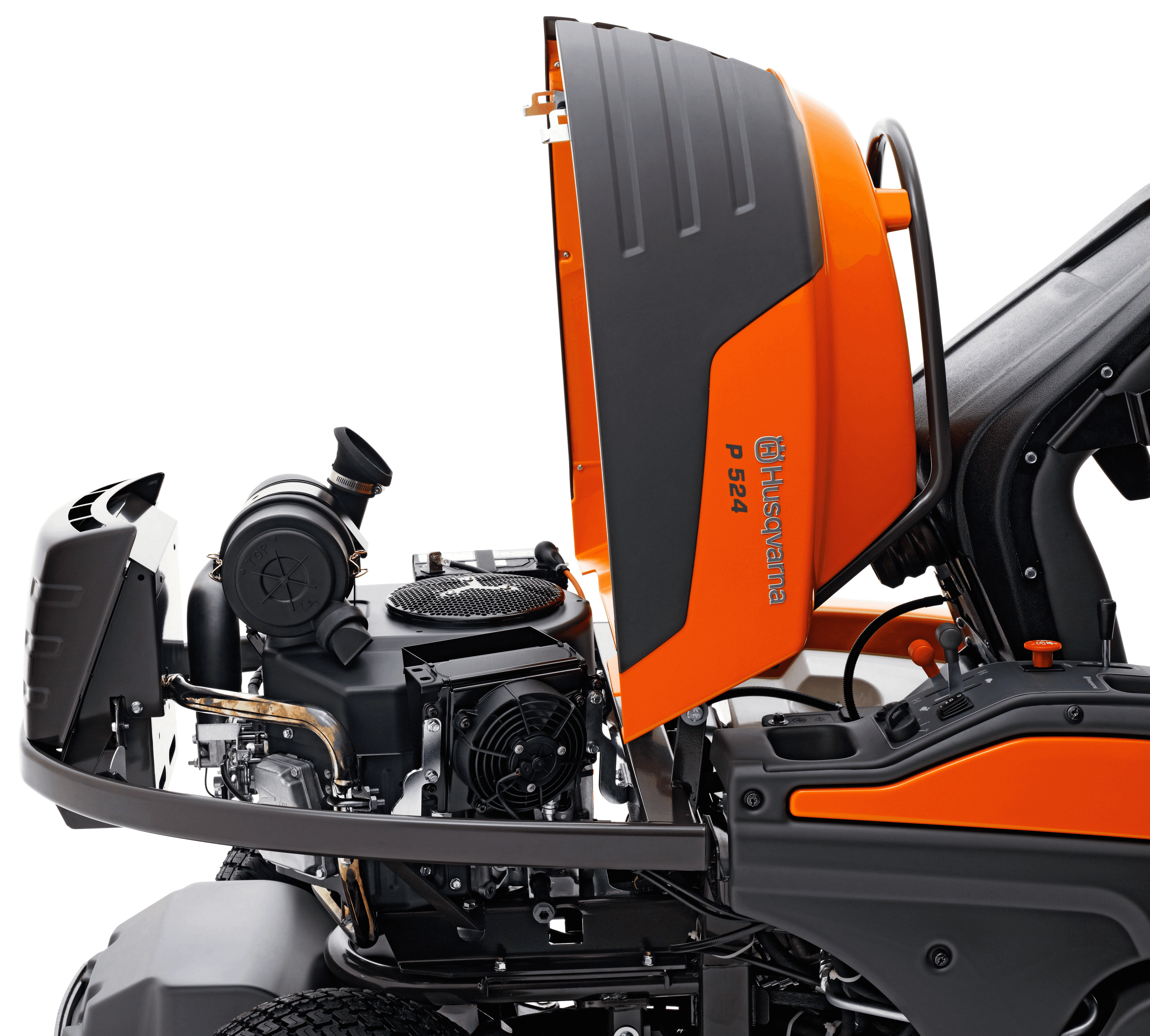

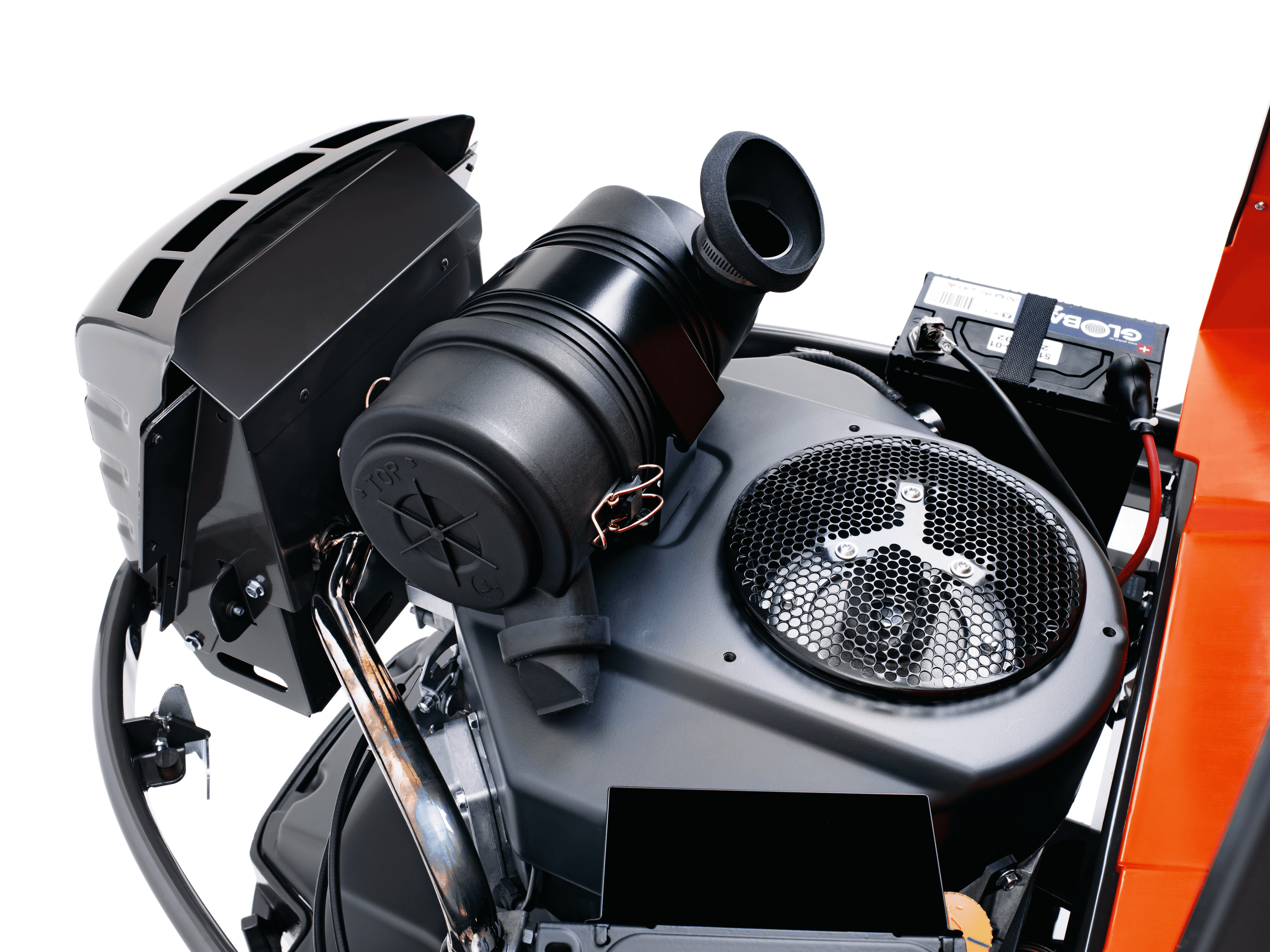

Easy-access service points
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Greasable mandrels
Greasable mandrels for easy maintenance

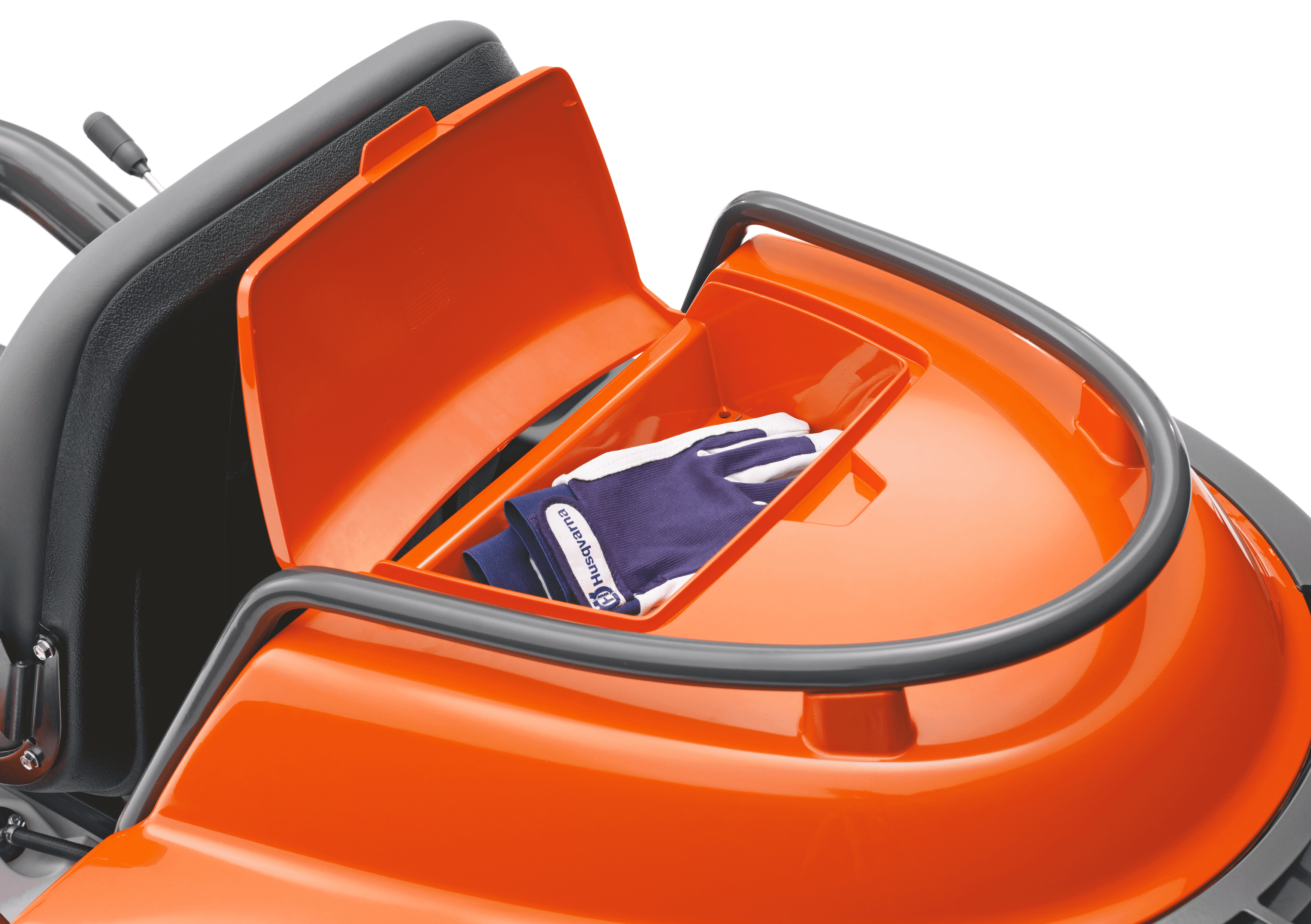

Cargo holder
Practical carrier for extra equipment
Service position
Service position for easy deck maintenance.
Durable ladder frame
Heavy-duty, durable steel ladder frame
Cast iron rear wagon
Durable cast iron rear wagon
Four large wheels
Equally sized wheels for a comfortable ride
Dual LED lights
Dual LED lights for enlarged lighted area and safer operation in darker conditions.
Specifications | Art No: 967847901 |
|---|---|
| Output shaft power | 13.9 kW |
| Weight (excl. cutting equipment) | 427 kg |
| Cylinder displacement | 726 cm³ |
| Weight (complete product w/o side packed articles) | 427 kg |
| Fuel tank volume | 22 l |
| Sound pressure level at operators ear | 88 dB(A) |
| Base machine, height | 117.4 cm |
| Base machine, length | 205 cm |
| Base machine, width | 98 cm |
| Battery capacity | 24 Ah |
| Battery pack weight | 5.4 kg |
| Battery voltage | 12 V |
| Cutting height max | 80 mm |
| Cutting height min | 25 mm |
| Cutting width, max | 122 cm |
| Cutting width, min | 112 cm |
| Deck thickness | 4 mm |
| Fuel consumption | 335 g/kWh |
| Fuel tank volume | 5.8 gal (US) |
| Gross weight towed | 200 kg |
| Ground clearance | 105 mm |
| Net power at preset rpm | 3000 rpm |
| Net power at preset rpm Energy | 13.9 kW |
| Sound power level, guaranteed (LWA) | 104 dB(A) |
| Sound power level, measured | 102 dB(A) |
| Speed forward max | 13 km/h |
| Speed reverse max | 9 km/h |
| Uncut circle | 50 cm |
| Vibration level seat | 0.7 m/s² |
| Vibration level steering wheel | 3 m/s² |
| Wheelbase | 100 cm |
